Description

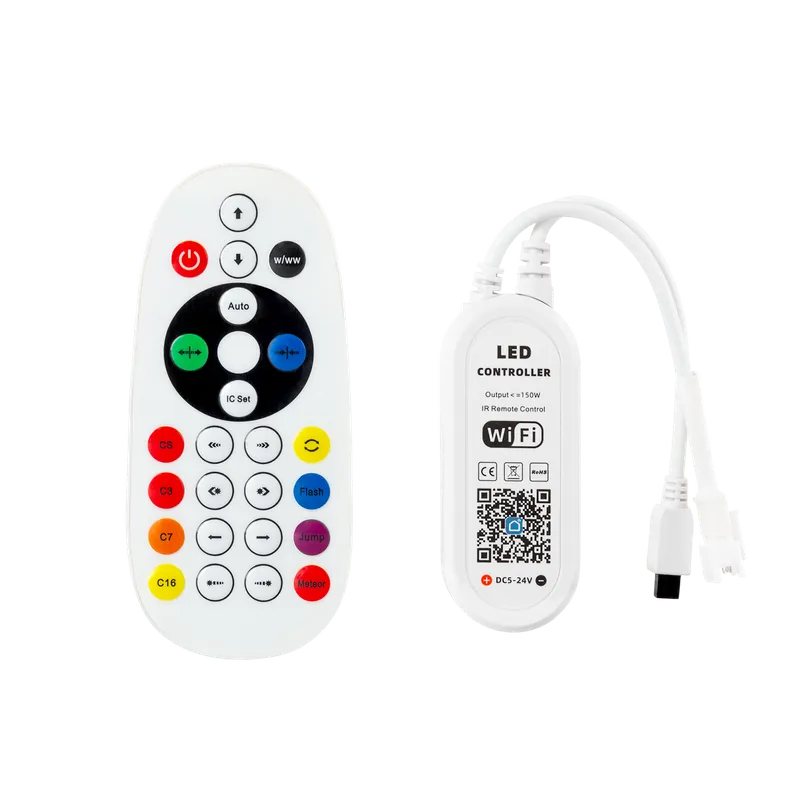

The 12-24V DC Digital RGBIC LED Strip WiFi Controller with IR Remote allows you to switch between different programs, regulate the intensity and speed of the light emitted by the LED. It also allows you to program the RGB color range of the LED using digital technology.

This Digital controller with SPI technology allows you to switch between the different effects provided from the factory with the IR remote, as well as regulate the color change speed, color tone and attenuation of the light emitted by the LED strip. Using the IC1930 protocol, the 12-24V DC Digital RGBIC LED Strip WiFi Controller with IR Remote allows you to program the sequence of the color range you want, that is, create tracking effects, flash, turn on groups of LEDs independently, etc.

A RGBIC digital strip controller is a device that allows you to generate a wide range of light effects on a RGBIC digital LED strip thanks to the integration of a WS2811 IC chip in each group of LEDs, allowing them to operate independently. The maximum distance of the strip that can be controlled depends on the number of points supported by the controller. This controller can control a maximum of 200 points. For example, if our strip is controlled in groups of 3 LEDs, and it has 60 LEDs per meter, then the controller can control up to 10 meters of strip.

The IR remote control allows you to control the digital LED strip without visual contact between the two. It is multi-level, multi-color, flexible control effects and has power input polarity protection. It has 133 dynamic modes, 20 static colors, 10 levels of intensity control and 10 levels of sequential speed control.

Configuration and management will be done through the TUYA application that is available for iOS and Android operating systems. This can be downloaded from the App Store and Google Play respectively. Find LED strips and other controller options in our online store.

* The controller is compatible with the following IC chips: WS2811, WS2812B, WS2813, UCS1903.

* It is important to note that digital controllers for LED strips can only handle a single data output line.
