Description

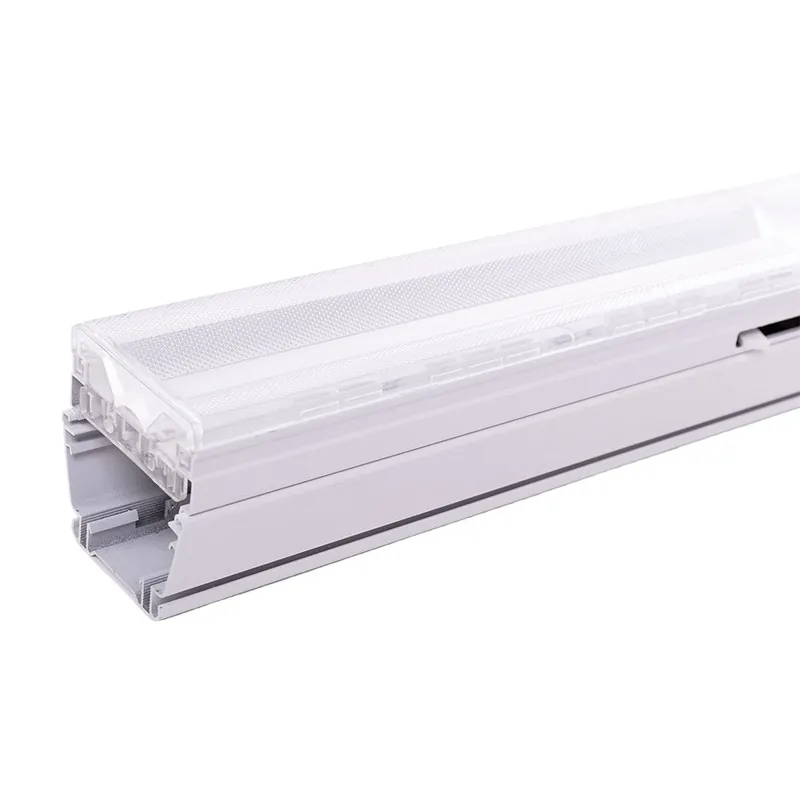

Linear LED luminaire with aluminum chassis that provides excellent thermal conductivity and offers great resistance to high temperatures. It mounts a 90º Opening Polycarbonate optic that offers optimal lighting in corridors and passageways.

It can be connected in series and create linear light structures. Its electrical connection is made up of 7 wires with a 2.5 mm2 section. It allows connecting up to 50 luminaires forming continuous sections of up to 75 meters, without there being a large voltage drop. The luminaire can transport three electrical phases and the neutral (L1, L2, L3, N). It is electrically isolated by connecting the ground (GND). To regulate the light intensity of the LED Linear Luminaire, connect the DALI dimmer to the DIM1 and DIM2 wires.

The connection has a moving part so that we can choose the electrical line with which we want to power the driver. the Linear LED Luminaire. In this way we will be able to carry out three independent ignitions in the entire section of Linear Bars. For example, if we connect 30 linear bars in series, we can select that the first 10 are powered by L1, the next 10 by L2, and the last 10 by L3. Thus, with a triple switch we could decide the group of luminaires that we want to turn on.

Designed for use in shops, exhibitions, homes, industries, supermarkets, offices…
