Description

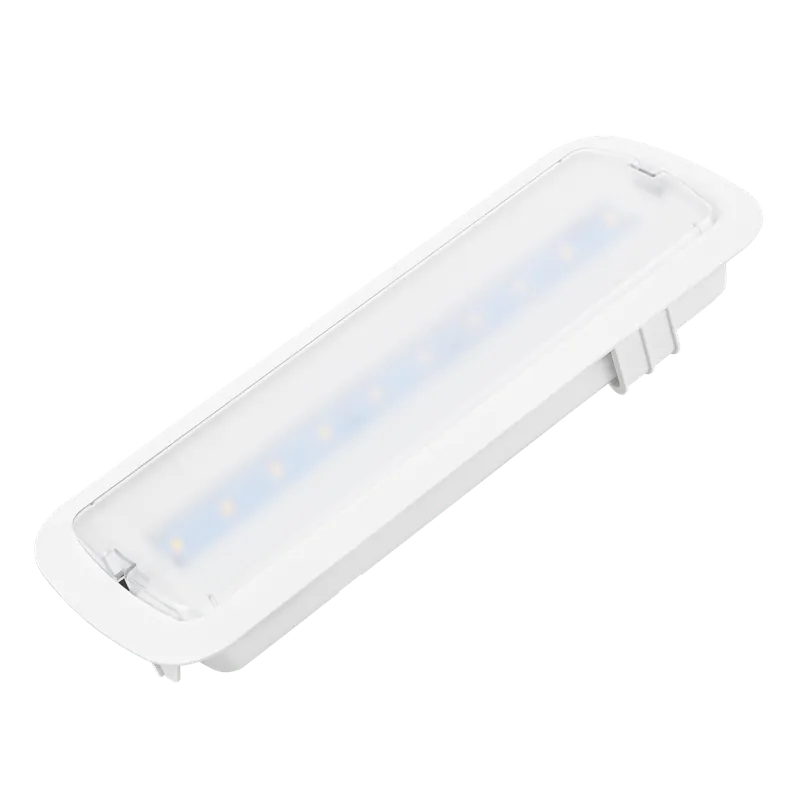

This LED emergency light provides backup lighting during power outages, providing visibility in emergency situations.

It is made of ABS (acrylonitrile butadiene styrene), a shock-resistant material.

It incorporates SMD5730 LED chips that ensure clear and intense lighting, even through the self-adhesive sign, with a luminous flux of 200 lm and a cool white tone (5000K).

The light is not permanent, but turns on automatically in the event of a power failure and has 3 hours of autonomy.

Through an LED indicator it is possible to know if the device is working (green color) or if the battery is charging (red color), which allows easy monitoring of its status.

Self-test system

Indicates the status of the emergency lights at all times. The equipment periodically performs two tests according to the UNE-EN 50172 standard:

Functional test: At least once a month, it is necessary to simulate a power failure for a sufficient time to ensure that all the luminaires are switched on via the battery.

Autonomy test: At least once a year, it must be verified that the autonomy of each equipment is equal to or greater than the nominal one. To do this, a power failure will be simulated and the batteries will be allowed to run out.

Installation

This emergency light can be installed in two ways:

Recessed: Replacing an old luminaire or making a new hole. Once the cut and wiring connection have been made, the luminaire is easily inserted and fixed using its two side fins.

Surface: It only requires installation with the wiring connection on the wall or ceiling, in a simple and fast way. The frame that the luminaire has for recessed installation must be removed prior to surface installation.

Includes all the elements necessary for assembly.
